Schroth Bolt- or Snap-in Brackets for Race Seat Installation
Schroth Bolt- or Snap-in Brackets for Race Seat Installation is built for track and competition cockpit setups where shell design, driver containment, mounting compatibility, and approval details matter. Review the preserved manufacturer specifications below for sizing, construction, homologation, and mounting notes before purchase.
PMB Performance added this context so customers can compare the seat against their chassis, brackets, harness setup, and intended use without removing the original manufacturer graphics or specs.

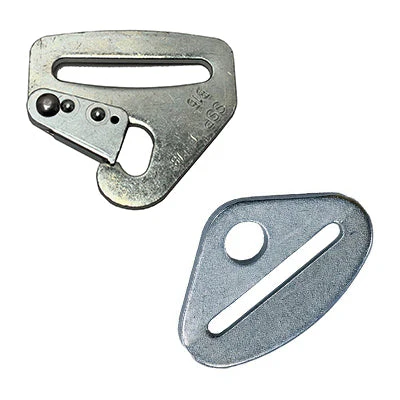

Schroth Bolt-In or Snap-In Brackets
B24 Bracket
The B24 is the most economical bolt-in bracket offered. It's a heavy-duty steel bracket that cannot be bent to aid installation. Dimensions are 5mm thick, 69 x 46mm with a 13mm (1/2") bolt hole. There is a slight 10Ā° bend so that this bracket can be bolted directly to a flat surface and leave room for webbing wrapped into it.
It can be sewn in or wrapped with an LV4 (recommended), LV10 or LV11. FIA and SFI 16.1/16.5 approved. Cannot be used for a lap belt bolt-in bracket under SFI 16.5. Three-inch webbing must be folded at the edges for use with this bracket.
B15 Bracket
The B15 snap-in bracket snaps to eyebolts or bolt-in bracket B23B. It can be sewn into 2" and 3" webbing, or wrapped with an LV4, LV10 or LV11. When wrapped into 3" webbing, one must fold the edges of the webbing in and use an LV7. Can be used on any point of a harness, including lap belt, sub strap, or shoulder belt. FIA and SFI 16.1 approved.
Original: $7.50
-65%$7.50
$2.62Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Schroth Bolt- or Snap-in Brackets for Race Seat Installation is built for track and competition cockpit setups where shell design, driver containment, mounting compatibility, and approval details matter. Review the preserved manufacturer specifications below for sizing, construction, homologation, and mounting notes before purchase.
PMB Performance added this context so customers can compare the seat against their chassis, brackets, harness setup, and intended use without removing the original manufacturer graphics or specs.
Schroth Bolt-In or Snap-In Brackets
B24 Bracket
The B24 is the most economical bolt-in bracket offered. It's a heavy-duty steel bracket that cannot be bent to aid installation. Dimensions are 5mm thick, 69 x 46mm with a 13mm (1/2") bolt hole. There is a slight 10Ā° bend so that this bracket can be bolted directly to a flat surface and leave room for webbing wrapped into it.
It can be sewn in or wrapped with an LV4 (recommended), LV10 or LV11. FIA and SFI 16.1/16.5 approved. Cannot be used for a lap belt bolt-in bracket under SFI 16.5. Three-inch webbing must be folded at the edges for use with this bracket.
B15 Bracket
The B15 snap-in bracket snaps to eyebolts or bolt-in bracket B23B. It can be sewn into 2" and 3" webbing, or wrapped with an LV4, LV10 or LV11. When wrapped into 3" webbing, one must fold the edges of the webbing in and use an LV7. Can be used on any point of a harness, including lap belt, sub strap, or shoulder belt. FIA and SFI 16.1 approved.
