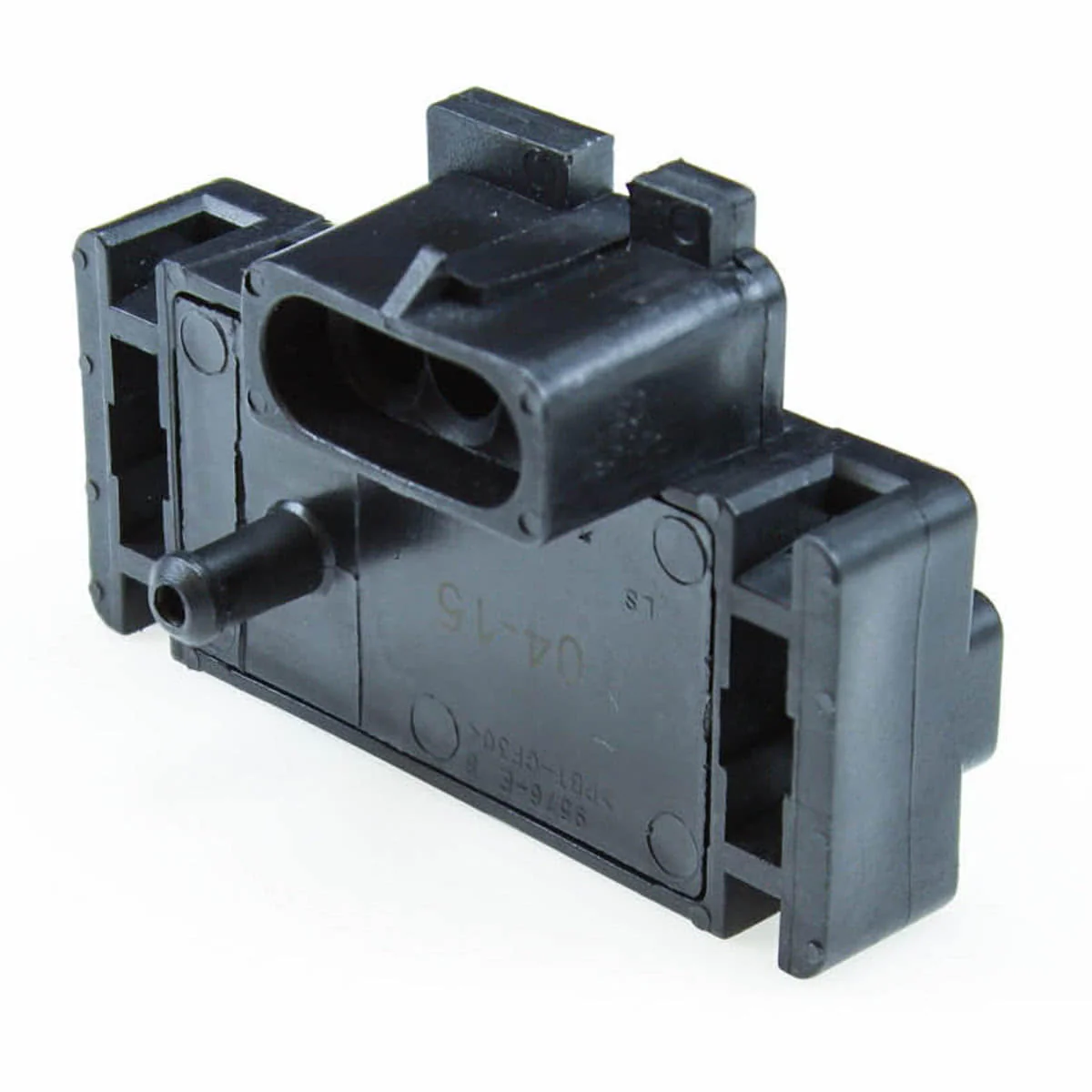

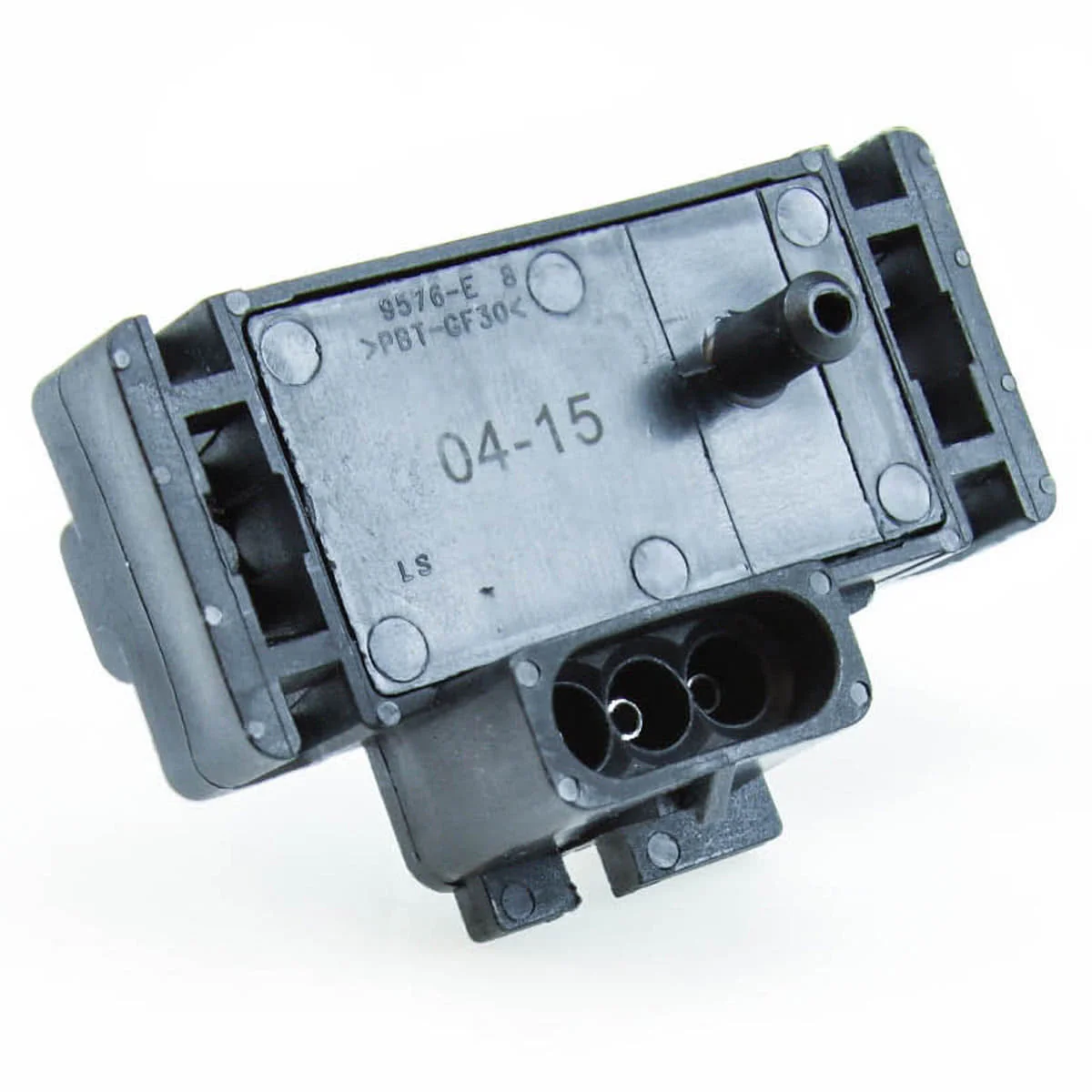

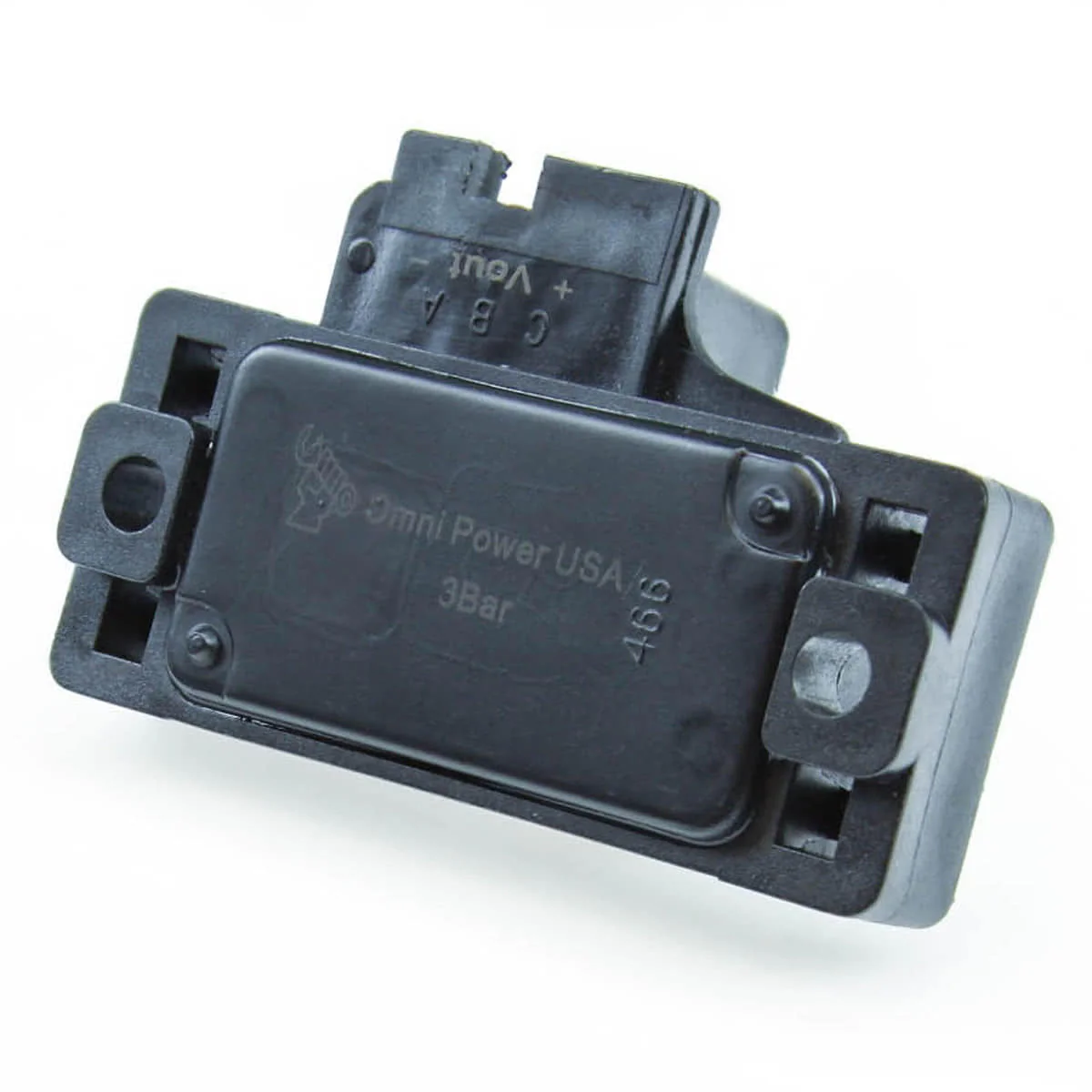

MAP – GM 3 Bar MAP Sensor

MAP – GM 3 Bar MAP Sensor



MAP Sensor GM 3 bar (Manifold Absolute Pressure Sensor), standard, compatible with the MS3Pro and all flavors of the MegaSquirt EMS / MicroSquirt EMS.

MAP Sensor assembled in the USA, unlike the current Delphi production.

Calibration is linear with 1.1 kPa at 0 volts and 315.5 kPa at 5 volts.

The wiring harness connector is sold separately as we give you a choice of a ready-to-crimp connector, or a pre-crimped pigtail.  Our USA-assembled map sensor uses a universal keying that is compatible with pigtails for 1, 2, and 3 bar MAP sensors. Older sensors used a specific keying.

    Select Option
    From $30.45

    Original: $86.99

    -65%
    MAP – GM 3 Bar MAP Sensor—

    $86.99

    $30.45

    Product Information

    Shipping & Returns

    Description



    MAP Sensor GM 3 bar (Manifold Absolute Pressure Sensor), standard, compatible with the MS3Pro and all flavors of the MegaSquirt EMS / MicroSquirt EMS.

    MAP Sensor assembled in the USA, unlike the current Delphi production.

    Calibration is linear with 1.1 kPa at 0 volts and 315.5 kPa at 5 volts.

    The wiring harness connector is sold separately as we give you a choice of a ready-to-crimp connector, or a pre-crimped pigtail.  Our USA-assembled map sensor uses a universal keying that is compatible with pigtails for 1, 2, and 3 bar MAP sensors. Older sensors used a specific keying.
