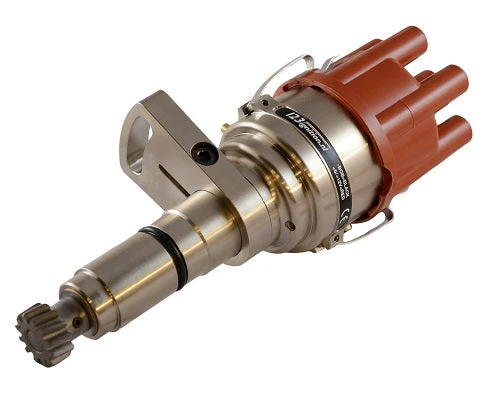

123 Switched Distributor for Porsche 911, 914-6 with 2.4, 2.7, 3.3 (1972 and up) for 3-Pin Boxes

123 Switched Distributor for Porsche 911, 914-6 with 2.4, 2.7, 3.3 (1972 and up) for 3-Pin Boxes

123 MicroSwitch Programmable Distributor

PMB Performance is proud to announce the addition of 123 Ignition to their lineup and 123ignition is proud to announceĀ their amazing programmable ignition!Ā The 123\PORSCHE-911-BIG-6-R-V is developed for the Porsche 911 (2.4 - 2.7 and 3.3 liter until September 1977) with a bracket at the distributor.

There are 16 different advance curves programmed which can be selected by a small microswitch.

MAINĀ FEATURES

  • Vacuum-advance
  • Automatic dwell
  • Automatic power-cut after 1 second
  • Gear shift retard
    Ā Ā
    DESCRIPTION

    The wireless programmable 123\PORSCHE-911-BIG-6-R-V is designed for Porsche 911 2,4L ā€“ 2,7L and 3,3L 6 cylinder engines.

    INSTALLATION MANUAL

    Suitable for engines without HKZ (CDI) unit or first generation HKZ unit ( 3 wires ).

    Warning: Donā€™t use the original HKZ (CDI) coil direct on the 123ignition.

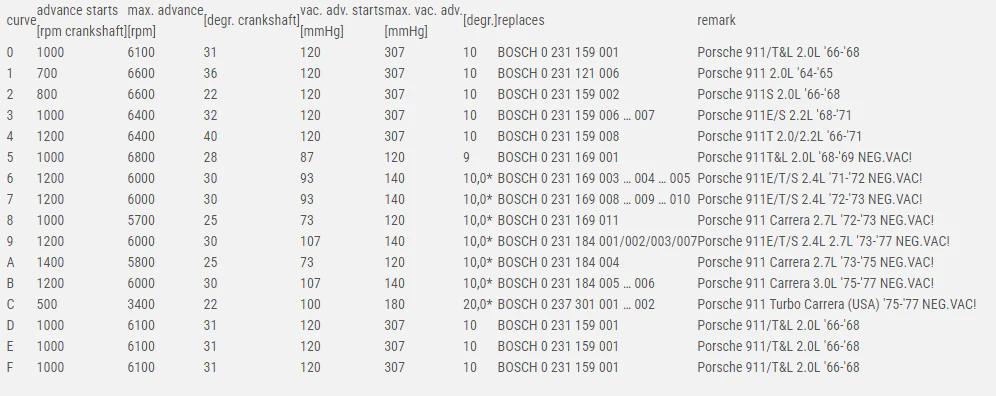

    The unit offers a maximum total of 16 advance-curves to be selected by the end-user. Please take a look in the table in the pictures for available advance curves.

    Specifications:

    • Cylinders: 6
    • Directions: CW
    • Voltage: 4,0 - 15,0 volt
    • Range: 500 - 8000 rpm
    • Temperature: -30 to 100 Celsius
    • Coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
    • Dwell: constant current, fully automatic
    • Time-out: after 1 second current is switched off
    • Accuracy: <0,5 degr. crankshaft
    • Vacuum: None.
    • Curve: Wireless programmable with Android or iOS app
    • Max. Advance: 45 degr. crankshaft

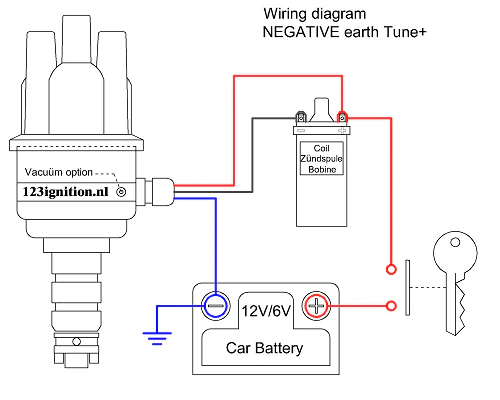

    • Wiring: red = +6V or +12V, black = '-' coil
    $262.50

    Original: $750.00

    -65%
    123 Switched Distributor for Porsche 911, 914-6 with 2.4, 2.7, 3.3 (1972 and up) for 3-Pin Boxesā€”

    $750.00

    $262.50

    Product Information

    Shipping & Returns

    Description

    123 MicroSwitch Programmable Distributor

    PMB Performance is proud to announce the addition of 123 Ignition to their lineup and 123ignition is proud to announceĀ their amazing programmable ignition!Ā The 123\PORSCHE-911-BIG-6-R-V is developed for the Porsche 911 (2.4 - 2.7 and 3.3 liter until September 1977) with a bracket at the distributor.

    There are 16 different advance curves programmed which can be selected by a small microswitch.

    MAINĀ FEATURES

    • Vacuum-advance
    • Automatic dwell
    • Automatic power-cut after 1 second
    • Gear shift retard
      Ā Ā
      DESCRIPTION

      The wireless programmable 123\PORSCHE-911-BIG-6-R-V is designed for Porsche 911 2,4L ā€“ 2,7L and 3,3L 6 cylinder engines.

      INSTALLATION MANUAL

      Suitable for engines without HKZ (CDI) unit or first generation HKZ unit ( 3 wires ).

      Warning: Donā€™t use the original HKZ (CDI) coil direct on the 123ignition.
      The unit offers a maximum total of 16 advance-curves to be selected by the end-user. Please take a look in the table in the pictures for available advance curves.

      Specifications:

      • Cylinders: 6
      • Directions: CW
      • Voltage: 4,0 - 15,0 volt
      • Range: 500 - 8000 rpm
      • Temperature: -30 to 100 Celsius
      • Coil: stock or High Energy coil, primary coil NOT below 1,0 ohm
      • Dwell: constant current, fully automatic
      • Time-out: after 1 second current is switched off
      • Accuracy: <0,5 degr. crankshaft
      • Vacuum: None.
      • Curve: Wireless programmable with Android or iOS app
      • Max. Advance: 45 degr. crankshaft
      • Wiring: red = +6V or +12V, black = '-' coil
